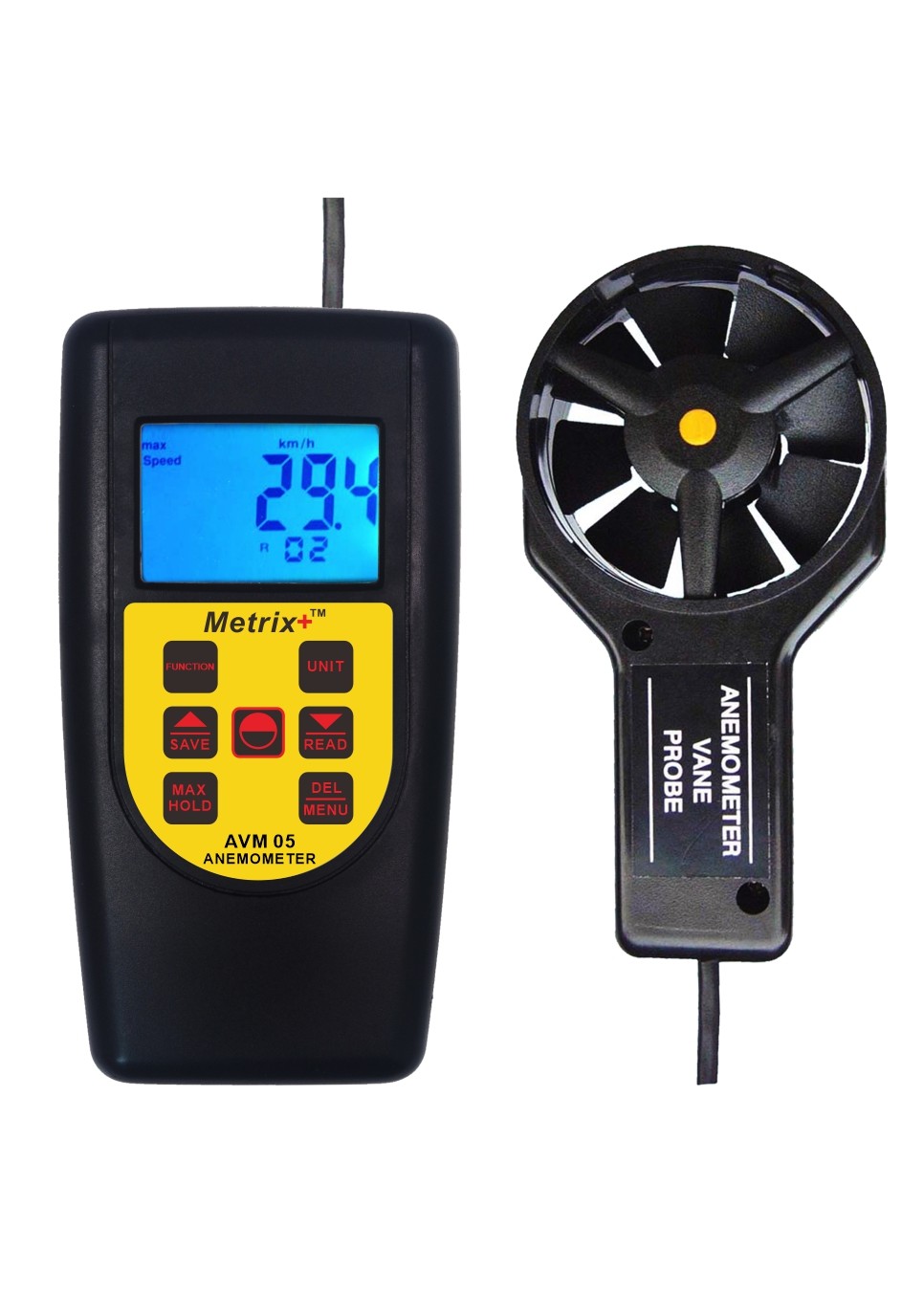

AVM 05
Separate sensor digital anemometer to measure wind speed upto 45m/s, air flow and air temperature.
Features:
- Built in temperature measurement.
- A sensitive balance vane wheel rotates freely in response to air flow
- Reading convertible to different measurement units.
- Data memory for storing and recalling values later.
- Data hold and auto power off.
- Backlit display.
Applications:
An anemometer is a device used for measuring wind speed with additional features of wind direction, temperature and relative humidity. It is a common instrument in weather stations, metrological departments and checking air conditioning and heating systems.
Measuring Principle:
The digital anemometer measures wind speed by measuring the speed of the fan(vane), whose axis is parallel to wind direction, using a revolution counter and converting it into readable format.
| Model | Metrix+ AVM 05 | |||
| Display | 13mm 4-digits LCD | |||
| Measuring range | Air velocity | Range | Resolution | Accuracy |
| 0.4 ~ 45.0m/s | 0.1 | +(2%n + 0.1m/s) | ||
| 1.4 ~ 162.0km/h | 0.1 | +(2%n + 0.1km/h) | ||
| 80 ~ 8860ft/min | 1 | +(2%n + 1ft/min) | ||
| 0.8 ~ 88knots | 0.1 | +(2%n + 0.1knots) | ||
| Air flow | 0 ~ 9999 CMM(cubic metres/min | 0.001 ~ 1 | +(2%n + 1m3/min) | |
| 0 ~ 9999 CFM(cubic feet/min) | 0.001 ~ 1 | +(2%n + 1ft3/min) | ||
| Beaufort scale | 0 ~ 12 | 0.1 | ±0.5 | |
| Wave height | 0 ~ 14m | 0.1 | ±0.1 | |
| Air temperature | 0 ~ 60°C / 32 ~ 140°F | 0.1°C / 0.1°F | 0.5°C / 0.9°F | |
| Units | Air velocity : m/s, ft/min, knots, km/hr; Air flow : CMM, CFM; Beaufort scale : force; Wave height : m; Air temperature : °C/°F | |||
| Data storage | 24 groups | |||
| Sampling rate | per second approx | |||
| Sensor | Air velocity/flow sensor : conventional angled vane arms with low friction ball bearing | |||
| Temperaure sensor : Precision thermistor | ||||
| Operating conditions | 0 ~ 50°C; Humidity < 80%RH | |||
| Power | 4 x 1.5V AAA(UM-4) batteries | |||
| Size and weight | Main unit : 156 x 67 x 28mm; Sensor head : 72mm diameter; 260g(excl. batteries) | |||
| Standard accessories | Main unit, manual, batteries | |||
| Catalogue: | Catalogue |
