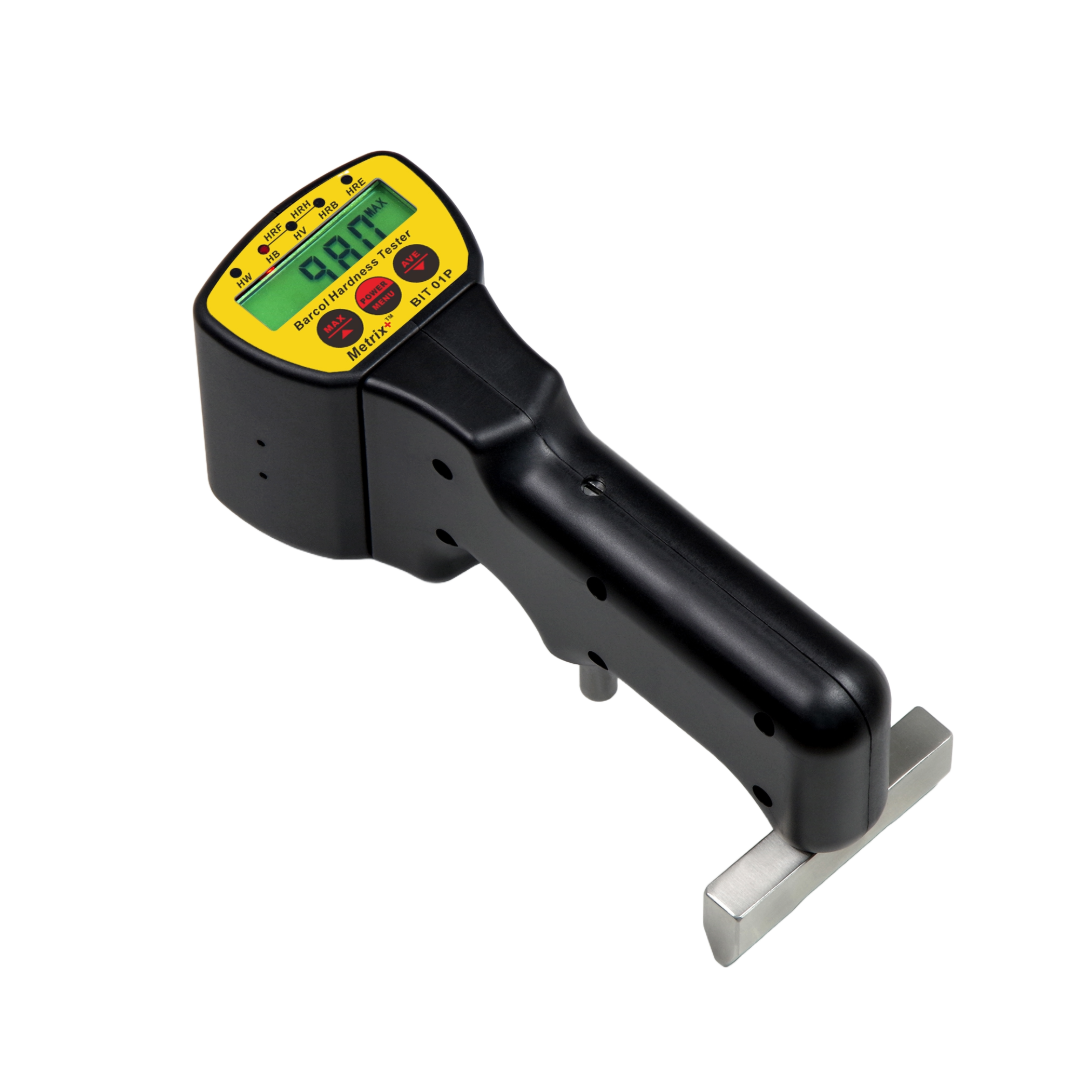

BIT 01P Barcol Impressor

This can be used to quickly measure the hardness of pure aluminium, soft and thick Al alloys, Al strip, Al section bars, Al castings and forgings, soft metals, copper, brass, rigid plastics and in fiber reinforced plastics(glass steel), non-reinforced hard plastics, etc.

Features:

§  Easy one-hand operation for quick measurements on site.

§  Balance positioning doesn’t require any other support for measurement.

§  Avg/max and conversion to HW/HB/HRF/HV/HRH/HRB/HRE scales.

§  Optional Data logging


Applications:

This can be used to quickly measure the hardness of pure aluminium, soft and thick Al alloys, Al strip, Al section bars, Al castings and forgings, soft metals, copper, brass, rigid plastics and in fiber reinforced plastics(glass steel), non-reinforced hard plastics, etc.




Measuring Principle:

A needle of specific size is hard pressed on to the sample, and the depth of penetration is measured to estimate the hardness of the sample. Barcol impressor is mainly useful in Aluminium processing industry. Formula: HBa=100-h/0.0076, h-indentation depth, 0.0076-constant, HBa-Barcol hardness.

Model

Metrix+ BIT 01P

Standards

ASTM B648-10(2015), ASTM D2583-13, GB/T 3854-2005

Std Hardness scale

Hba

Range

0 ~ 100 Hba, approx. 25 ~ 135 HBW

Accuracy

42 ~ 48 Hba: +2.5Hba

81 ~ 88 Hba: +1.5Hba

Resolution

0.1Hba

Statistics

Avg and Max

Other Hardness Scales

HW/ HB/ HRF/ HV/ HRH/ HRB/ HRE

Dimensions

170 x 63 x 82mm

Weight

390g

Power Source

2 x 1.5V AAA batteries

Std accessories

Main unit, std block, pins, spanner, screwdriver, manual, case

Optional accessories

Data logging: PC interface (USB & software), Bluetooth
