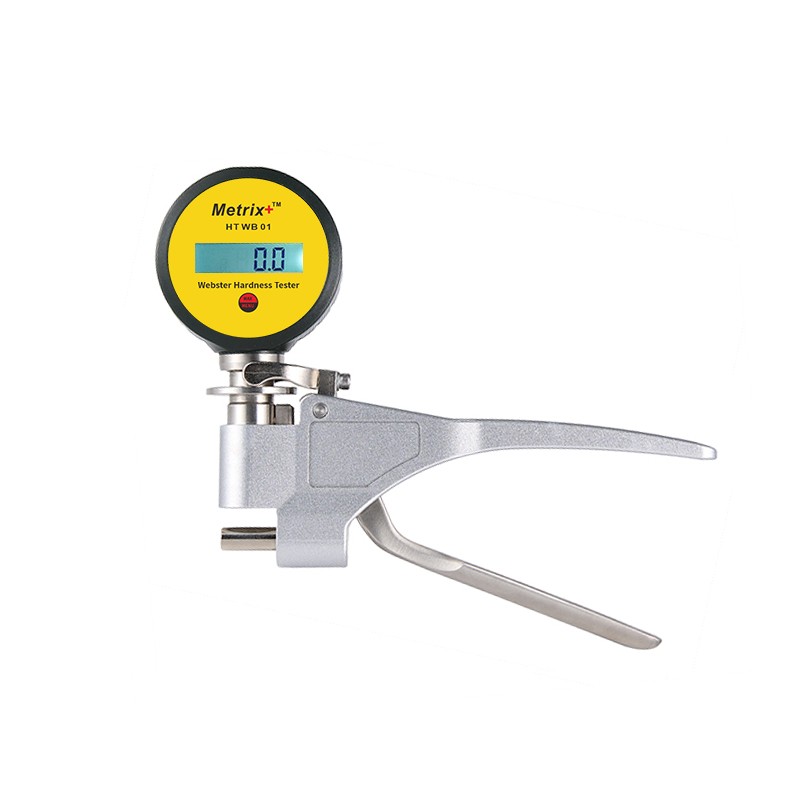

Webster hardness can be used to quickly measure the hardness of aluminium alloys, aluminium pipes, plates, workpieces and other softer metal aluminium products.
§
Easy
one-hand operation for quick measurements on site.
§
§
Presser/
needle can be easily changed on wear and tear.
§
Avg/max
and conversion to HBa/HB/HRF/HV/HRH/HRB/HRE scales (only HT WB 01D).
This
can be used to quickly measure the hardness of aluminium alloys, aluminium
pipes, plates, workpieces and other softer metal aluminium products.
A
needle of specific size is hard pressed on to the sample, and the depth of
penetration is measured to estimate the hardness of the sample. Webster
Hardness is mainly used to measure hardness of Aluminum and its alloys.
Model |
Metrix+ HT WB 01 |
Metrix+ HT WB 01D |
Std
Hardness scale |
HW |
|
Range |
0 ~ 20HW (low sensitivity <4HW
and >17HW) 25 ~ 110HRE 58 ~ 131HV |
|
Accuracy |
+2% (+5% <4HW and
>17HW) |
|
Resolution |
0.5HW |
|
Statistics |
- |
Avg and Max |
Other
Hardness Scales |
- |
HBa/ HB/ HRF/ HV/ HRH/ HRB/ HRE |
Dimensions |
220 x 160 x 30mm |
|
Weight |
625g |
|
Power Source |
2 x 1.5V AAA batteries |
|
Std
accessories |
Main unit, std webster block, presser/ needle, wrench,
screwdriver, anvil handle, manual, case |
|
Optional
accessories |
Spare presser/ needle, std webster block |
Catalogue: | Catalogue |
